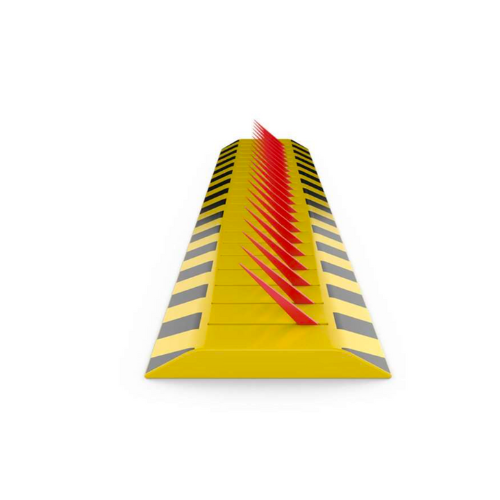

Spike Tyre killer
Technical Specifications of flat spike type tyre killer Physical specs (Approx.) (Subject to change)
| Parameter | Specification |
|---|---|
| Centre Piece Width | 920 mm (Moulded steel) |
| Length | 3050 mm |
| Height | 85 mm |
| Number of Spikes | 20-23 |
| Number of Operators | 2 |
| Spike Distance | 125 mm |
| Spike Height | 220-265 mm |
| Spike Above Surface | 135-150 mm |
| Spike Diameter | 25 mm |
| Shaft, Spike & Bush Material | Stainless steel |
| Shaft Size | 2700 mm x 25 mm |
| Weight | 500 kgs |
| Pattern on Top | Checker plate with choice of paint |
| Rotation | On ball bearings (6205), soft movement |
| Load Capacity | 40 tonnes |
| Water and Weather Resistance | Yes |
Electric specs
| Parameter | Specification |
|---|---|
| Voltage | 220 VAC |
| Wattage | 500 W maximum |
| Operators | Two |
| Limit Switches | Two |
| UPS Requirement | 625 VA |
| Panel | Supplied along |
| Motor Type | Synchronous |
| Bi-directional | Yes |
| Start Stop | Instantaneous |
| Stalling | No damage |
| RPM | Low |
| Torque | High |
| Gear Box | NH8 gears complete gear box on chain pulley |
| Gear | 127-167 |
| Opening Time | Less than 1.5 sec |
| Closing Time | Less than 1.5 sec |
| Electrical Wire Outlet | Internally fixed GI pipe |
